Green Desulfurization TechnologyBiological H₂S Scrubber System
Chemical-free desulfurization technology utilizing specialized sulfur-oxidizing bacteria to eliminate H₂S from raw biogas streams.
Advanced & Eco-Friendly Biogas Desulfurization

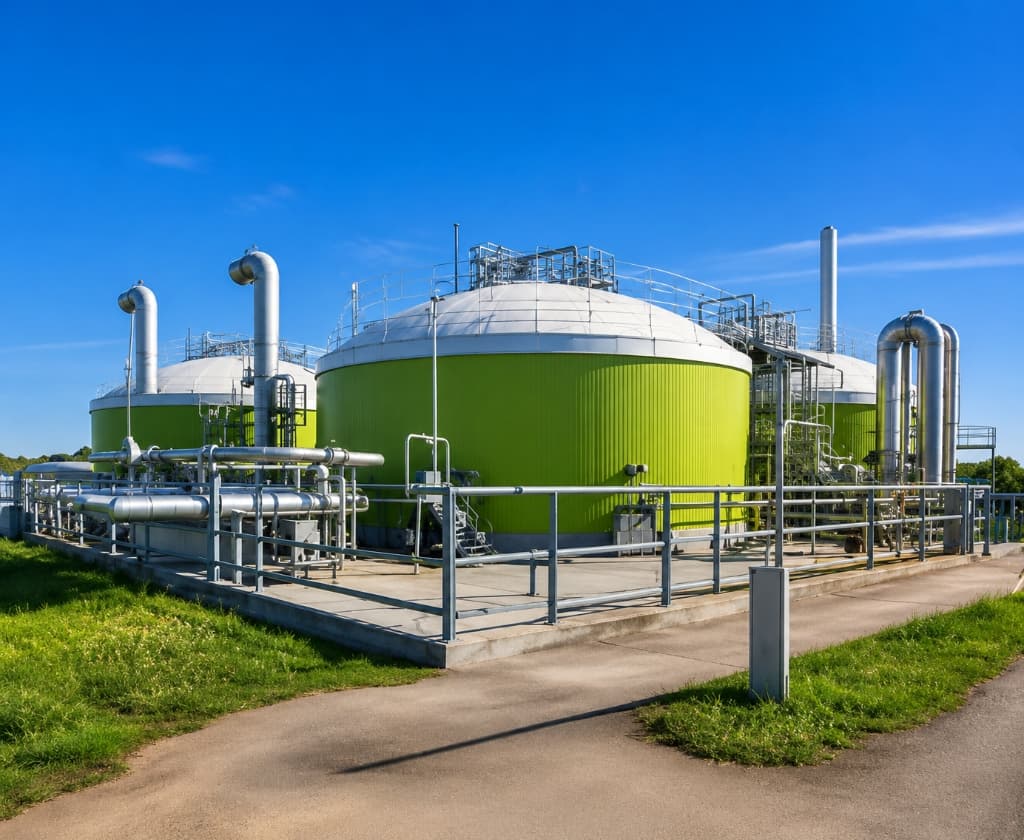

Biological H₂S Scrubber systems are engineered for efficient hydrogen sulfide (H₂S) removal from biogas streams in Bio-CNG, biogas, and waste-to-energy plants. These systems use naturally occurring sulfur-oxidizing bacteria to convert harmful H₂S gas into sulfate compounds without the use of hazardous chemicals.
Designed for medium and high gas flow applications, the technology offers stable performance, low operating cost, and long equipment life while supporting environmentally sustainable operations.
Why H₂S Removal is Essential
Hydrogen sulfide (H₂S) is one of the most corrosive and damaging impurities present in raw biogas. Even at low concentrations, untreated H₂S can cause severe plant damage:

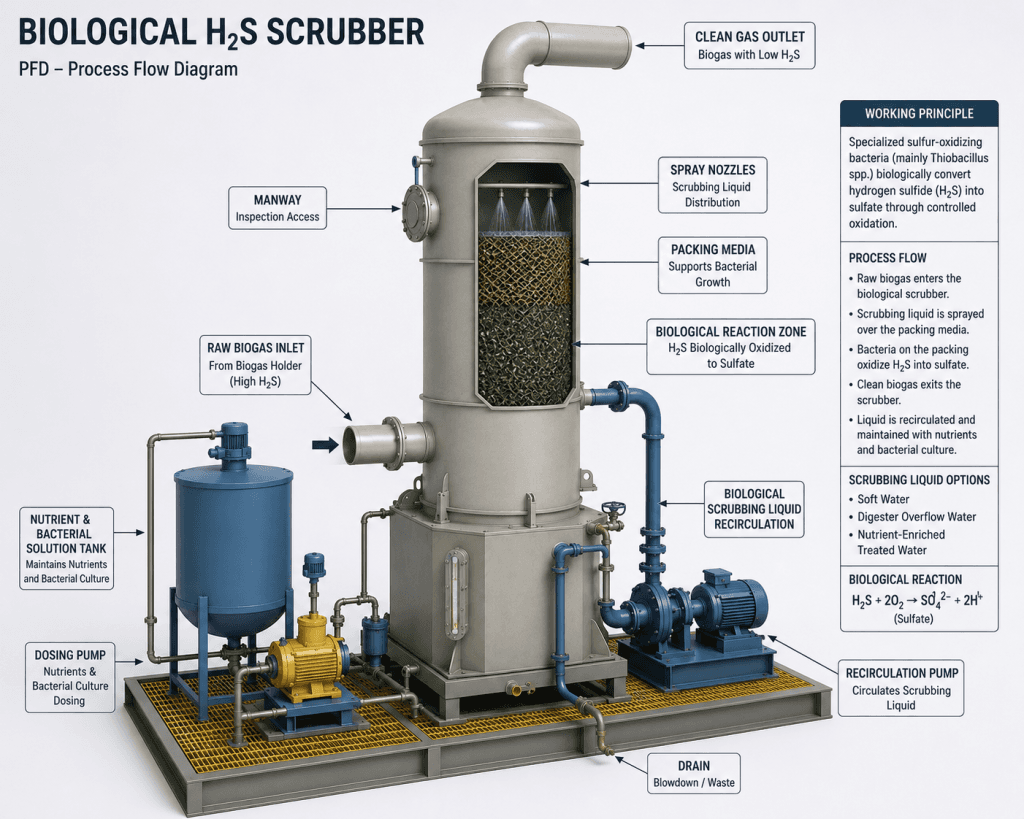

Working Principle & Process Flow
The system operates using specialized sulfur-oxidizing bacteria, mainly from the Thiobacillus family, which biologically convert hydrogen sulfide into sulfate through controlled oxidation reactions.
Recirculating Liquid Parameters
The recirculating liquid provides moisture and transport media for the biological oxidation of sulfide. The recirculating liquid may consist of:
* Micronutrients and bacterial cultures are continuously maintained to ensure stable desulfurization.
Key Features
Greliance biological scrubbers combine eco-friendly desulfurization with low operating costs.
Chemical-Free Green Tech
The process does not require harmful chemicals or consumables, making it an environmentally sustainable desulfurization solution.
Very Low Operating Cost
Low power consumption and minimal chemical use results in highly reduced OPEX and daily maintenance expenses.
High Removal Efficiency
The system efficiently reduces high hydrogen sulfide inlet concentrations down to nearly non-detectable levels.
Extended Equipment Life
Protects subsequent compressors, pipelines, upgrading units, and gas generators from corrosive acid attack.
Low Pressure Drop
Optimized tower packing media minimizes gas flow resistance, reducing blower work limits and energy requirements.
Multi-Feedstock Ready
Suitable for pressmud biogas setups, food waste digestion, cattle dung systems, municipal waste, and industrial sludge.
Startup & Operating Conditions
At startup, the reactor is inoculated with active sulfur-oxidizing bacteria. During desulfurization, biological activity is monitored via strict operating parameters:
Indicates active hydrogen sulfide oxidation reactions.
Scrubber temperature is maintained between 35°C to 50°C.
Typical retention range of 1.6 to 2.3 seconds.
H₂S removal desulfurization exceeds 99% under optimized runs.
Sulfate Effluent Utilization
The sulfate-rich effluent generated from the biological scrubbing process can be safely blended with treated digestate water for bio-composting applications. This provides an additional sulfur source for compost enrichment and improves overall nutrient value.
Advantages of Biological H₂S Scrubber Systems
Features and operational benefits of selecting chemical-free desulfurization.
| Feature | Benefit |
|---|---|
| Chemical-Free Operation | Eco-friendly, sustainable desulfurization with no hazardous compounds. |
| Low OPEX | Reduced operational costs and minimal replacement consumables. |
| High Removal Efficiency | Delivers superior gas quality suitable for upgrading modules. |
| Corrosion Protection | Ensures longer equipment lifespan for pipe grids and engines. |
| Low Maintenance | Stable biological film desulfurization runs for years. |
| Flexible Integration | Designed for immediate retrofits into existing biogas plants. |
Where Biological Scrubbers are Used
Standard desulfurization setups across industrial, B2B, and agricultural projects.
